How Many Sprinkler Heads Can You Put on One Zone?

The Quick Answer: Typical Heads Per Zone

If you are wondering how many sprinkler heads per zone is normal, most residential zones run about 4 to 6 rotor heads or 8 to 10 spray heads. A small zone can get by with as few as four or five heads. Treat those ranges as a starting point, because the real ceiling comes from the water your system can deliver.

Sprinkler zone capacity is set by the valve. Every head on a zone shares one valve, and that valve passes only so many gallons per minute. Add heads until their combined flow reaches what your supply can carry, and you have found the limit. A zone under that limit waters well. A zone over it waters poorly, even when every head is in perfect shape.

This is why two neighbors on the same street can have different head counts on their zones. Pipe size, water pressure, and head type all move the number. The sections below show how each piece works, so you can judge your own yard with confidence.

Why Water Pressure and Flow Rate Set the Real Limit

Every sprinkler head uses a certain number of gallons per minute, or GPM, and that use rises and falls with water pressure, measured in PSI. Add up the GPM of every head on a zone and you have the demand on that valve. Your supply has to meet that demand. This makes sprinkler heads per valve a question of flow first and a question of counting second.

Here is a worked example. At 35 PSI, a rotor with a 3.0 nozzle uses about 3.11 GPM. A home with 10 GPM of available flow could run about three of those heads on one zone. Pipe and meter size shift the ceiling too. A common reference chart for a 3/4 inch meter and service line lists a maximum zone flow of about 6 GPM at 40 PSI, 8 GPM at 50 PSI, and 9 GPM at 60 PSI. These figures are general guidance, and a given property can land above or below them.

San Antonio is a place where checking your own numbers pays off. SAWS reports that water pressure in its service area can range from 35 to 175 PSI. With a spread that wide, a head count that works at one address can starve a zone at another.

For a rough read at home, thread a pressure gauge onto an outdoor faucet and time how long a bucket of known size takes to fill. A technician's check gives a fuller picture of what each zone can carry.

Rotor Heads vs. Spray Heads Per Zone

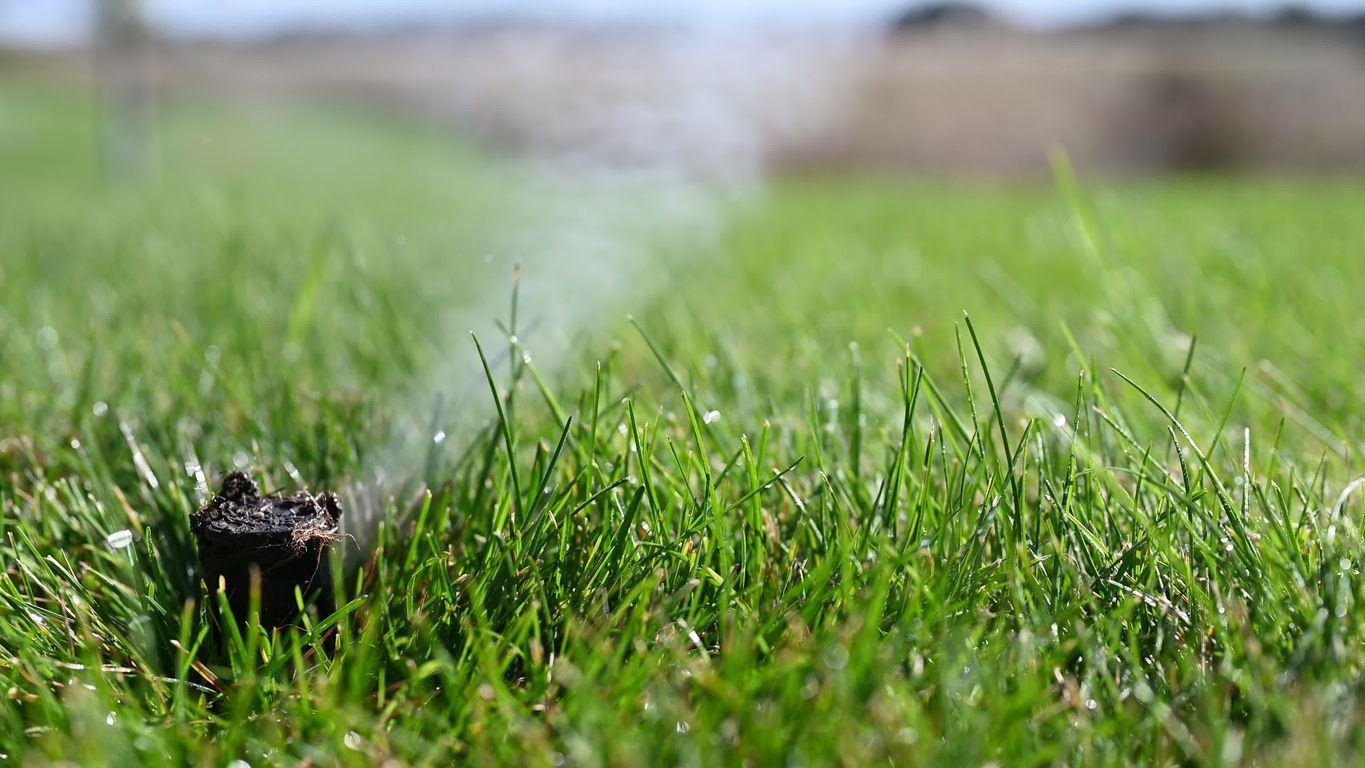

Rotor heads send out a slow, steady stream that reaches a large radius, so each head covers a lot of ground. A single rotor nozzle can flow from about 0.5 GPM on the smallest nozzle at low pressure to about 8 or 9 GPM on the largest nozzle at higher pressure. Because the per-head figure swings that much, the answer to how many heads fit on a zone depends on the nozzle sitting on each head. Most rotor zones land at 4 to 6 heads.

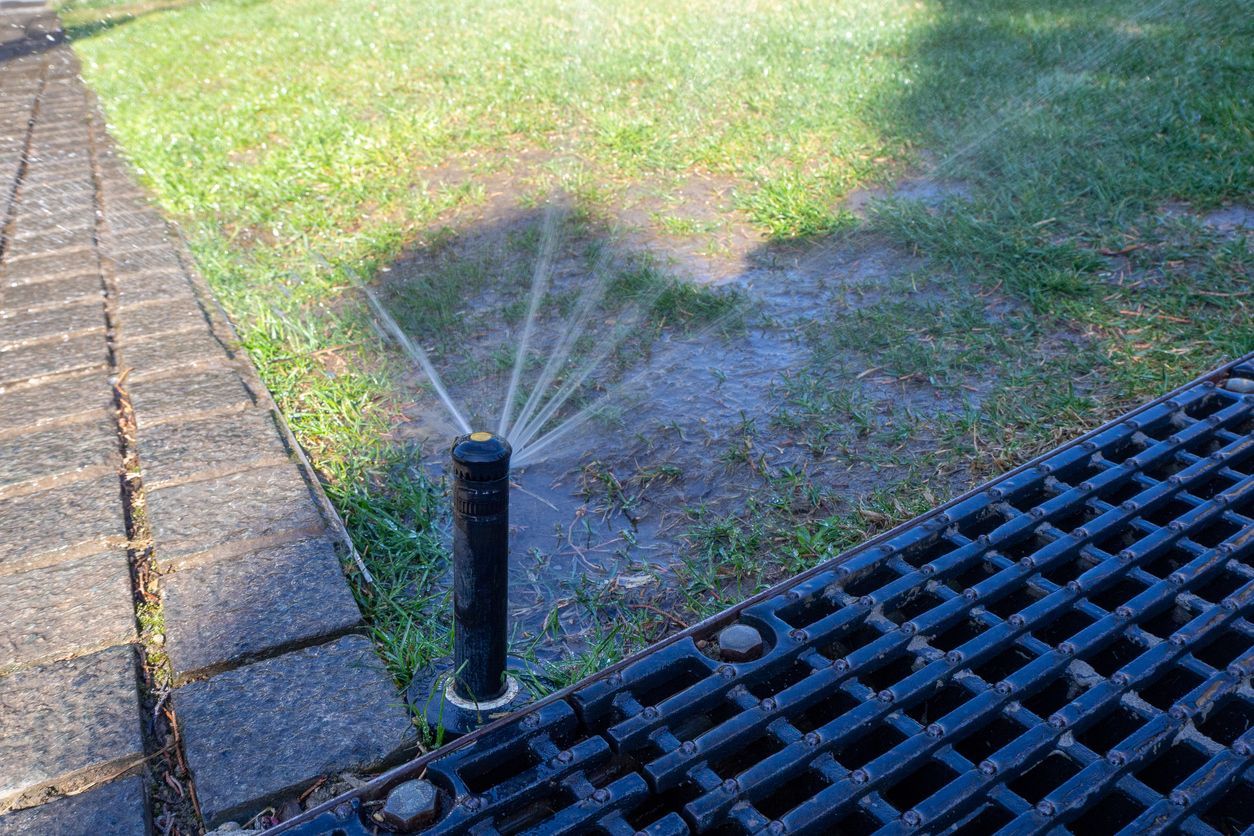

Spray heads throw a fan of water over a much smaller area. Each one uses more flow for the ground it covers, and a yard needs more of them to avoid dry gaps between heads. Most spray zones land at 8 to 10 heads.

Take two lawns of similar size. The rotor zone needs fewer heads to reach every blade of grass, and the spray zone needs more heads to do the same job. Both zones still answer to the same flow limit at the valve.

Layout plays a part as well. Corners, curves, and the overlap between neighboring heads can add or remove a head or two from the count, so a plain rectangle and an L-shaped yard of equal size rarely need the same number.

Signs Your Zone Has Too Many Heads

An overloaded zone tends to show itself in everyday watering. These are the signs to look for when the zone runs:

• Weak or misting spray that falls short of its usual reach
• Uneven coverage, with dry spots between heads
• Longer run times than before to get the lawn evenly wet
• A valve that hisses, or a controller that seems to struggle, when that zone starts

One sign on its own can point to a clogged nozzle or a loose fitting. Two or three together on the same zone suggest the zone is asking for more water than the valve can pass.

What to Do If Your System Is Overloaded

An overloaded zone usually gets fixed in one of three ways. The first is re-zoning, which splits one crowded zone into two so each gets its own share of flow. The second is swapping to lower-flow nozzles, which cuts the demand on the valve. The third is adjusting head spacing so fewer heads do the same work. Each fix starts with knowing the zone's true numbers, which is why guesswork rarely settles it.

A bucket test gives a rough idea, and a professional check gives the reliable one. A Texas Sprinkler Pros technician can look at zone pressure and head counts across your San Antonio property, and our sprinkler system repairs cover weak pressure, misting heads, and valve problems that point to an overloaded zone. Re-zoning and head adjustments fall under the adjustments and fine-tuning we perform during maintenance visits.

If your zones show any of the signs above, Schedule Your Sprinkler System Maintenance and we will check how each zone is set up.
